Top Load Cartoner
Machine to load products in cartons

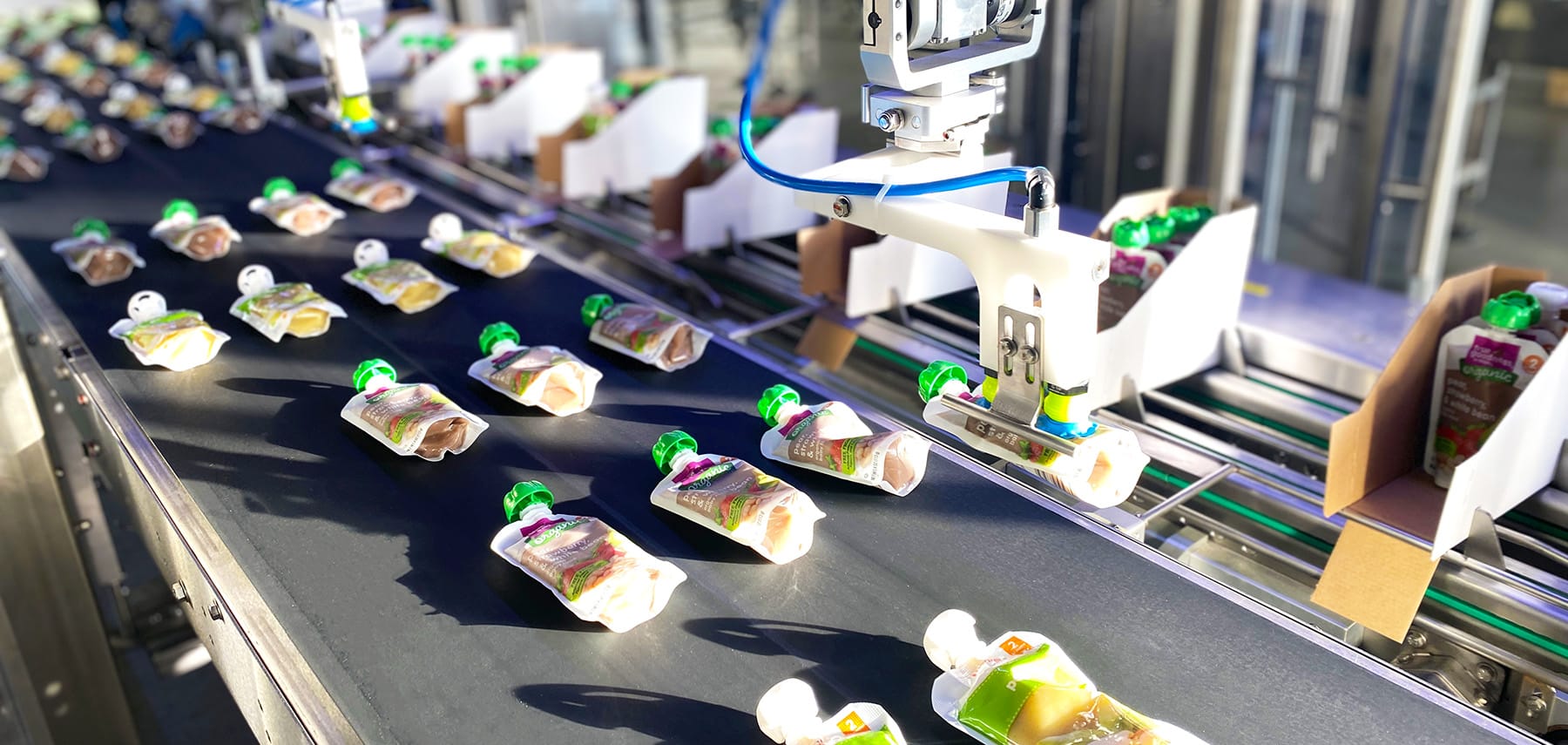

Our Top Load Cartoner is a packaging machine developed to meet the specific needs of your production. It forms cardboard packaging from flat blanks and automatically loads products from the top using tripod robots and closes cartons. Ensuring fast and reliable handling, the automatic Cartoner is suitable for various packaging formats, offering maximum flexibility to meet diverse market demands.
The automatic Top Load Cartoner, also known as an automatic Cartoning machine or a Carton Packer, is equipped with a modern user interface, including a 19’’ color touchscreen for intuitive settings, simplified format memory, and clear display of operating instructions. Suitable for industrial speeds, it can reach up to 70 cartons per minute, depending on the nature and complexity of the products. Its ability to handle products in various ways – flat, on edge, single or multi-layer, and single or multi-row – makes it a versatile tool to optimize your packaging lines while ensuring consistent production quality.
Multiformat Cartoning machine: Supported carton Styles and Formats
Wraparound carton
Divisible wrap-around carton
Carton with 4 glued corners
Ready Shelf Packaging
Carton with joining ledges
Tray
ADAPTABILITY TO ALL YOUR PRODUCTS
Our machine adapts to a wide variety of products, far beyond the agri-food sector, thanks to internally developed gripping systems, custom-designed to meet the specificities of the processed products.
CONTINUOUS OPERATION
The Top Load Cartoner ensures smooth and continuous operation, with product pick-and-place in tracking or fixed mode, ensuring perfect synchronization for cartoning your products.
OPTIMAL SEALING WITH HOT MELT GLUING
Our machines use the Hot Melt gluing system for carton closure, ensuring precise, durable sealing perfectly suited to the robustness and quality requirements of the cartons.
DESIGN FOR QUICK FORMAT CHANGES
Thanks to an intuitive human-machine interface (HMI) and easily interchangeable grippers, our machine allows for quick format changes, achievable in seconds without the need for tools.
Watch our Top load cartoning system in action
Technical features that support your performance
Solution integrable into a complete line
The Top Load Cartoner is easily integrable into a complete packaging line. Upstream, it can be paired with packaging machines and a system of transition tunnels, or followed by a Checkweigher, a Case Packer, and a Palletizer, offering a fully automated and interconnected turnkey production solution.
Optimized ergonomics for operators
To facilitate maintenance and adjustments, the robotic cartoning machine can be equipped with a touchscreen tablet. Additionally, onboard cameras allow remote identification of potential malfunctions, ensuring quick and effective intervention by our technicians.
Advanced tools for simplified maintenance
Designed for operator comfort and convenience, our automatic Cartoner includes a blank magazine positioned at an ideal height for easy feeding. Its swing doors provide easy access to internal components, simplifying maintenance and adjustment operations.
Our Top Load Cartoner in numbers
70
maximum cartons formed per minute
95%
automatic adjustments
1 to 6
robots per machine
400
maxi carton length at machine output (in mm)
