Side Load Cartoner
Horizontal cartoning of your products

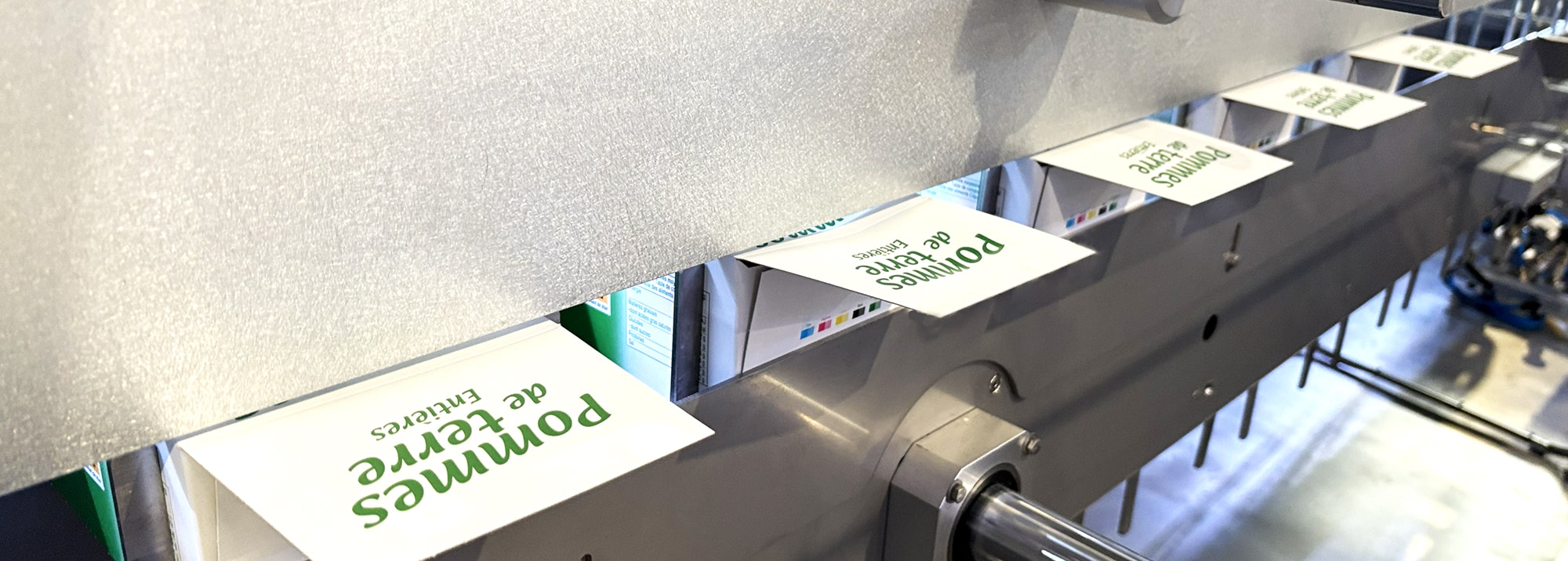

Designed to form cartons from pre-glued blanks, our Side Load Cartoners ensures precise and automated handling of products such as bags, trays, chocolate bars, frozen products… It offers two operating modes adapted to your products and integrates easily into your packaging line.
The Side Load Cartoner with a pushing system, ideal for trays or other rigid products, introduces the product into the carton using a pusher that acts as a guide.
The Side load Cartoner with drawers, perfectly suited for softer products such as pouches, inserts the product into the carton using a drawer that integrates directly into it for complete product guidance.
For simplified and efficient operation, the equipment is equipped with an intuitive human-machine interface (HMI), allowing real-time production monitoring and the creation of new formats. With precise and instantly accessible data, you benefit from optimal control over the entire process, ensuring efficiency and productivity on a daily basis.
ONE TECHNOLOGY, MULTIPLE NAMES
Side Load Cartoner, horizontal Cartoner or endload Cartoner: different names for the same operating principle, that of horizontally loading products into cartons, ensuring process automation.
ROBUSTNESS AND ENHANCED STABILITY
Equipped with a strong and rigid structure, the side-loading cartoner ensures excellent operational stability, even at high speeds. This design guarantees long-term precision while reducing vibrations and the risk of misalignment.
SIDE LOADING FOR HIGH SPEEDS
The side loading is ideal for high-speed cartoning, ensuring precision and efficiency to meet the demands of intensive production.
TWO SYSTEMS, ONE COMPLETE SOLUTION
The two horizontal cartoning systems provide a complete solution, integrating the formation, filling, and closing of pre glued cartons for efficient and precise packaging.
Watch our automatic side loading system in action
Technical features that support your performance
System Choice: Product Fragility and Stability at Stake
The choice between the pushing or drawer system depends on the fragility and stability of the products. The drawer system, particularly suited for delicate and unstable products, ensures gentle packaging while maintaining optimal precision. In both cases, product output is ensured by motorized side belts, allowing effective and uniform gluing of the side flaps for a flawless finish.
Versatility of Side Loading: Single and Group Packaging
The side loading offers great flexibility, adapting to both single and grouped cartoning. This system ensures precise and efficient packaging, meeting the varied needs of modern production lines, even at high speeds.
Flexibility and ease of use
Our side load cartoners are designed to combine performance and ease of use. They incorporate many advanced features, such as chutes for defective product recovery, tool-free carton mask replacement for format changes, and the creation of new formats directly from the control panel, ensuring flexibility and efficiency.
Our Side Load Cartoner in numbers
200
maximum cartoned products per minute (depending on the type of product)
19
touchscreen size for production control (in inches)
300
maximum carton length (in mm)
70
minimum carton width (in mm)
